UE9 PRO

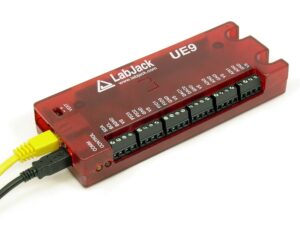

850,00€ Without taxationLabjack UE9-PRO Data Acquisition Module, with USB and Ethernet
– 14 analogue inputs ( 12-16 bits depending on speed )
– UE9 – Pro adds 24-bit low-speed ADC with 20-Bit Effective Resolution.
– ± 5 or 0-5 Max. analogue input range Volt
– 2 analogue outputs ( 12 – Bit , 0-5 volts )
– 23 digital I/O
– Up to 2 Counters ( 32 bits each )
– Up to 6 Timers (pulse synchronisation, PWM output, input quadrature, … )
– Supports SPI, I2C, and Asynchronous Serial Protocols (Master Only)
– Compatible with software or timed hardware Acquisition
– Maximum input Switching current +50 kHz ( depending on resolution )
– Capable of Command/Response Times as low as 1.5 milliseconds
– Screw terminals for some signal
– USB 2.0 / 1.1 Full Speed Interface
– Ethernet 10 Base -T Interfaz
– Dual-processor design with 168 MHz total processing power
– Electrical isolation Possible with Ethernet interface
– DAQ Wireless Possible with Ethernet interface and 802.11 Bridge
– Power supply required for USB operation
– Modbus / TCP supported on Hardware
– Drivers available for Windows , Linux , Mac and Pocket PC
– Examples available for C/C++, VB, LabVIEW, Java, and More
– Includes USB and Ethernet cable, power supply, and screwdriver.
– Universal power supply with clips (Australia, Europe, UK, USA)
– Free firmware updates.
– Enclosure Size Approximately 3 ” x 7 ” x 1 ” ( 75mm x 185mm x 30mm )
– Rated for Industrial Temperature Range ( -40 to +85 degrees C )
